Compact Vision Measuring Machine
Compact Vision Measuring Machine
View Details Information
QM-Fit – Precision Measurement for Small Parts
QM-Fit is a non-contact vision measuring machine for precise inspection of small components. Using smart dimensional analysis and intuitive touch-panel operation, it offers fast, reliable, and highly accurate measurements directly on the shop floor.
Designed with user-friendly software and built from extensive customer feedback, QM-Fit is a highly efficient Small Part Inspection System offering high accuracy while maintaining a compact footprint, making it ideal for modern production environments that require precision without complexity.
Click here for more information on QM-Fit's capabilities.
Key Features of QM-Fit
Accessible
QM-Fit delivers fast inspection & measuring time without compromising measurement accuracy, allowing manufacturers to increase their production rate and still meet quality requirements. Simply place the item on the stage, and the system handles the rest—streamlining inspection workflows while maintaining accuracy and repeatability. Its capability for small part measurement ensures that even the tiniest components, from electronic parts to micro-mechanical devices, are measured with exceptional precision.
Smart
Using advanced automatic element detection, QM-Fit reduces manual setup requirements and enables reliable measurement of complex geometries with minimal operator intervention. Also, the system uses software-aided optical measurement technology to provide intuitive data analysis and visual feedback, improving both efficiency and measurement reliability.
Compact

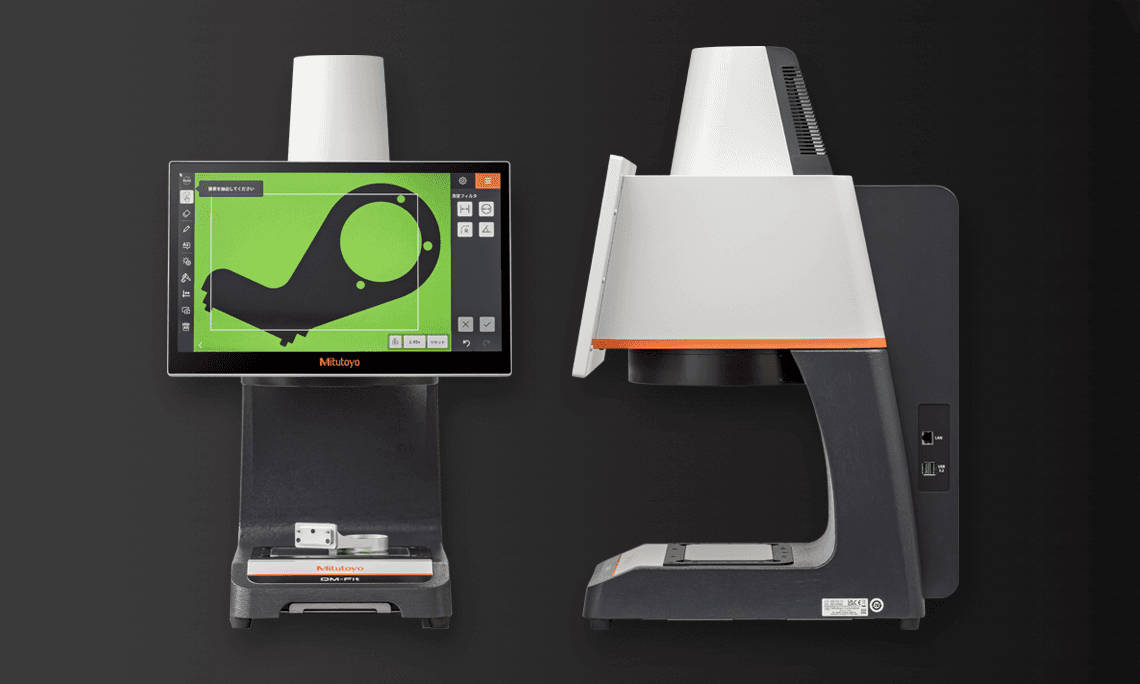

Measuring at 366MM (Length) X 407MM (Width) X 621MM (Height), QM-Fit has a standalone & integrated design that is more compact than other Vision Measuring Machines for easy installation.
QM-Fit
Smart Vision System

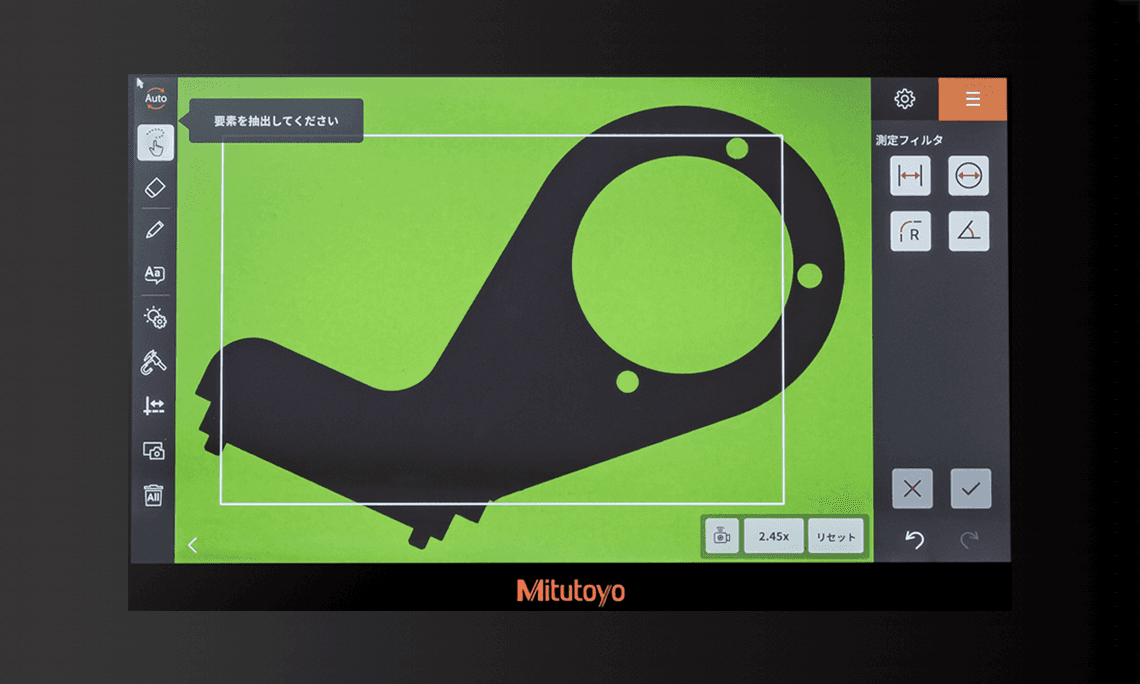

With one tap, the system automatically detects multiple geometric elements like circles and lines, enabling fast measurements without manual pre-selection.

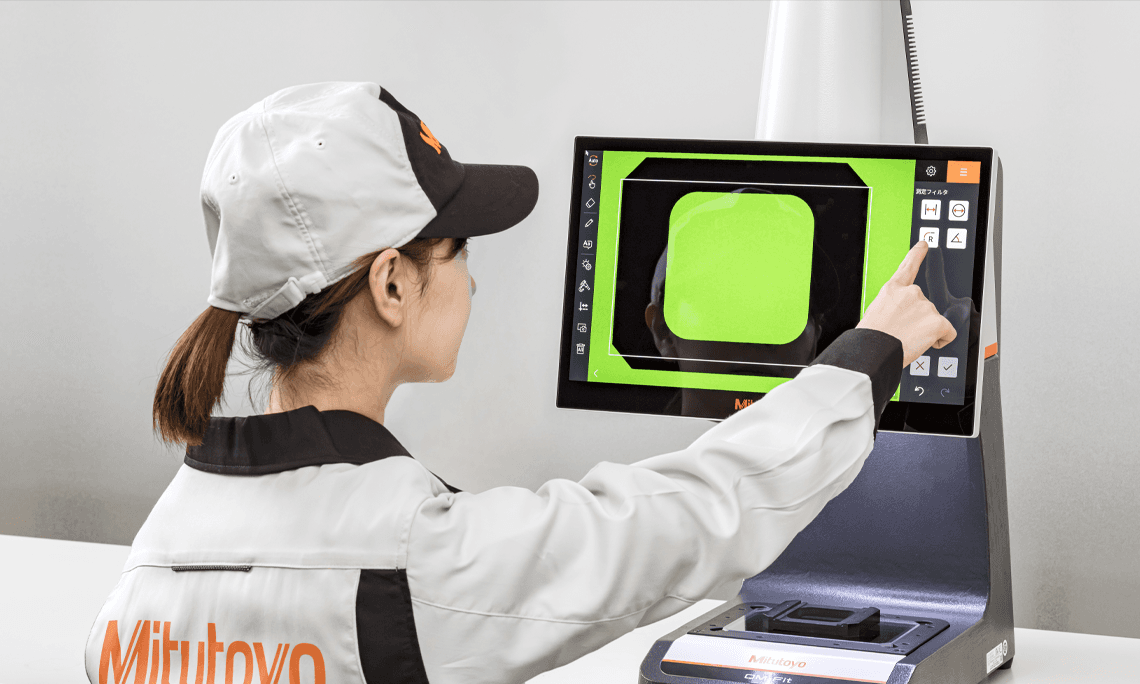

The touch panel enables intuitive use, allowing anyone to operate the system instantly without prior training or expertise.
The standalone, integrated design is significantly more compact than traditional systems, making it lightweight, space-saving, and easy to install anywhere.
